Daivd Bearing 6204 RS Deep groove ball bearings size 20x47x14mm

Product parameters:

Product name: Deep groove ball bearings Dimensions:Metric

Number of columns: single column Accuracy level:P5

model: 6204RS Z3V3 inner diameter：20

Material：Chrome steel Gcr15 outer diameter：47

Steel ball materia：lChrome steel thickness：14

Sealing method：Barrel or bag box

cage：Steel cage. Copper cage. Nylon cage

Application scenarios：Mechanical equipment, agricultural equipment, industrial

size：Standard size

Serve：OEM service. Design service

Function：transmission

OEM service：Customized bearing size and logo packaging

Applicable industries：Hotels, tailor shops, building material stores, production workshops, repair shops, food and beverage processing plants, farms,…

Introduction about us

The factory was established in 1996, formerly known as Yinsheng Bearing Accessories Processing Department, mainly engaged in the processing of bearing accessories. In 2006, Linqing Special Bearing Factory was established. In order to meet the market demand for bearings, it transformed into a bearing production-oriented company. The customer base is mainly domestic stores and foreign trade company orders. After years of product technology accumulation and sales expansion, in 2024, a company mainly responsible for foreign trade sales was established: Shandong (David) Bearing Manufacturing Co., Ltd.

Now we mainly focus on the production of high-precision bearings and the wholesale business of non-standard bearing customization.

Some of our automatic production line videos and inspection videos

Bearing automatic assembly demonstration (automatic cover installation machine)
1.Automatic bearing installation can reduce labor costs
2. It can improve bearing production efficiency and ensure the consistency of bearing quality.

Bearing noise detection

Full Noise Inspection of Bearings: Creating Core Value for Customers

Cost Reduction: It prevents customers from disassembly, replacement and rework due to bearing noise issues after assembly, reduces after-sales maintenance and backup inventory costs, and eliminates hidden losses throughout the entire chain.
Efficiency Improvement: It ensures bearings operate stably once put into use, avoids unplanned production halts, extends the service life of equipment, and helps customers maintain efficient operation of production lines.
Risk Mitigation: It conducts individual inspection to prevent batch quality accidents, meets the noise compliance standards of various industries, and meanwhile protects customers’ brand reputation, solidifying the trust in cooperation.

Common deep groove ball bearing size and speed comparison table

model	size(mm)			Basic load rating (lbf)		weight (Ib)	speed limit (min-1)
model	d	D	B	dynamic (Cr)	static (Cor)	KG	grease	lubricating oil
608	8	22	7	0.3	1.4	0.012	26000	34000
609	9	24	7	0.3	1.45	0.014	24000	32000
6000	10	26	8	0.3	1.96	0.019	22000	30000
6001	12	28	8	0.3	2.39	0.021	19000	26000
6002	15	32	9	0.3	2.83	0.03	18000	24000
6003	17	35	10	0.3	3.35	0.039	17000	22000
6004	20	42	12	0.6	5.05	0.069	15000	19000
6005	25	47	12	0.6	5.85	0.08	14000	18000
6006	30	55	13	0.6	8.3	0.116	12000	15000
6007	35	62	14	1	10.3	0.115	10000	14000
6008	40	68	15	1	11.5	0.19	8000	11000
6009	45	75	16	21	14.8	0.23	8000	10000
6010	50	80	16	22	16.2	0.25	7000	9000
6200	10	30	9	5.1	2.39	0.032	20000	26000
6201	12	32	10	6.82	3.05	0.037	19000	24000
6202	15	35	11	7.65	3.72	0.045	18000	22000
6203	17	40	12	9.58	4.78	0.065	16000	20000
6204	20	47	14	12.8	6.65	0.106	14000	18000
6205	25	52	15	14	7.85	0.128	13000	15000
6206	30	62	16	19.5	11.3	0.199	11000	13000
6207	35	72	17	25.7	15.4	0.288	9200	11000
6208	40	80	18	29.5	18	0.368	8000	10000
6209	45	85	19	31.5	20.5	0.416	7000	9000
6210	50	90	20	35	23.2	0.463	6700	8500
6211	55	100	21	43.2	29.2	0.603	6000	7500
6212	60	110	22	47.8	32.8	0.789	5600	7000
6213	60	120	23	57.2	40	0.99	5000	6300
6214	70	125	24	60.8	45	1.084	4800	6000
6215	75	130	25	66	49.5	1.171	4500	5600
6216	80	140	26	71.5	54.2	1.448	4300	5300
6217	85	150	28	83.2	63.8	1.803	4000	5000
6218	90	160	30	95.8	71.5	2.17	3800	4800
6219	95	170	32	110	82.8	2.62	3600	4500
6220	100	180	34	122	92.8	3.19	3400	4300
6221	105	190	36	133	105	3.78	3200	4000
6300	10	35	11	8.2	3.5	0.053	18000	24000
6301	12	37	12	9.7	4.2	0.06	17000	22000
6302	15	42	13	11.4	5.45	0.082	16000	20000
6303	17	47	14	13.5	6.55	0.115	15000	19000
6304	20	52	15	15.9	7.9	0.144	14000	17000
6305	25	62	17	17.22	11.39	0.2193	10000	13000
6306	30	72	19	20.77	14.17	0.3498	8000	10000
6307	35	80	21	25.66	17.92	0.4542	6800	8000
6308	40	90	23	31.35	22.88	0.6394	5800	7200
6309	45	100	25	40.66	30	0.8363	5000	6200
6310	50	110	27	47.58	35.71	1.0822	4400	5500
6311	55	120	29	71.5	44.5	1.37	5600	6700
6312	60	130	31	82	52	1.72	5300	6300
6313	65	140	33	92.5	60	2.11	4800	6000
6314	70	150	35	104	68	2.57	4500	5300
6315	75	160	37	113	77	3.08	4300	5000

Deep groove ball bearing speed ZV value comparison table

振动与噪音参数 Vibration and noise parameters

深沟球轴承振动(加速度)限值对照表 GB/T32333-2015													单位为分贝decibel
Deep groove ball bearing vibration(Acceleration)threshold GB/T32333-2015													单位为分贝decibel
轴承公称外径Dmm bearing bore size		直径系列Diameter series(0)serie					直径系列Diameter series(2)serie					直径系列Diameter series(3)serie
>	≤	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
10	15	36	33	30	27	24	36	33	30	27	24	41	37	33	29	25
15	20	37	34	31	28	25	37	34	31	28	25	42	38	34	30	26
20	25	38	35	32	29	26	40	37	33	29	26	43	39	35	31	27
25	30	39	36	33	30	27	41	38	34	30	27	44	40	36	31	27
30	40	41	38	35	32	29	42	39	36	33	30	46	42	38	33	29
40	50	43	40	37	34	31	44	41	38	35	32	48	44	40	35	31
50	60	45	42	39	36	33	46	43	40	37	34	50	46	42	37	33
60	70	48	45	42	38	35	49	46	42	39	36	52	48	44	39	35
70	80	50	47	44	40	37	51	48	44	41	38	54	50	46	41	37
80	90	52	49	46	42	39	53	50	46	43	40	57	53	48	43	39
90	100	54	51	48	44	41	55	52	48	45	42	59	55	50	45	41
100	110	56	53	50	46	43	58	54	50	47	44	61	57	52	47	43
110	120	58	55	52	48	45	60	56	52	49	46	63	59	54	49	45
120	130	60	58	54	50	47	62	58	54	51	48	65	61	56	51	47
130	140	63	60	56	52	49	64	60	56	53	50	67	63	58	53	49
140	150	65	62	58	54	51	67	63	59	55	52	69	65	60	55	51
150	160	67	64	60	56	53	69	65	61	57	54	71	67	62	57	53
160	170	69	66	62	58	55	71	67	63	59	56	73	69	64	59	55
170	180	71	68	64	60	57	73	69	65	61	58	75	71	66	61	57
180	190	73	70	66	62	59	76	71	67	63	60	77	73	68	63	59
190	200	77	74	70	64	61	78	74	69	65	62	79	75	70	65	61

Custom development of non-standard products

We can carry out customized development of various types of bearings according to customer samples or drawings, customized sizes, customized materials, as well as special stainless steel bearings, rubber-coated bearings, door and window pulley bearings, etc.

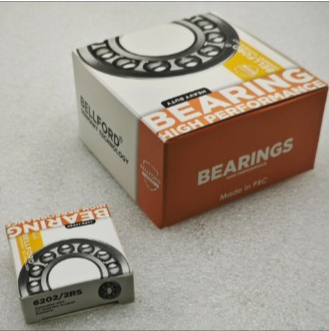

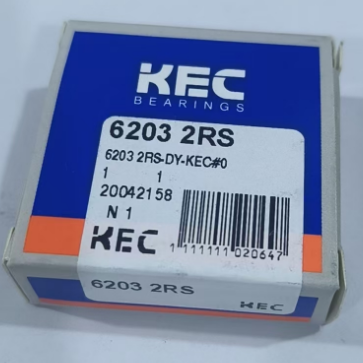

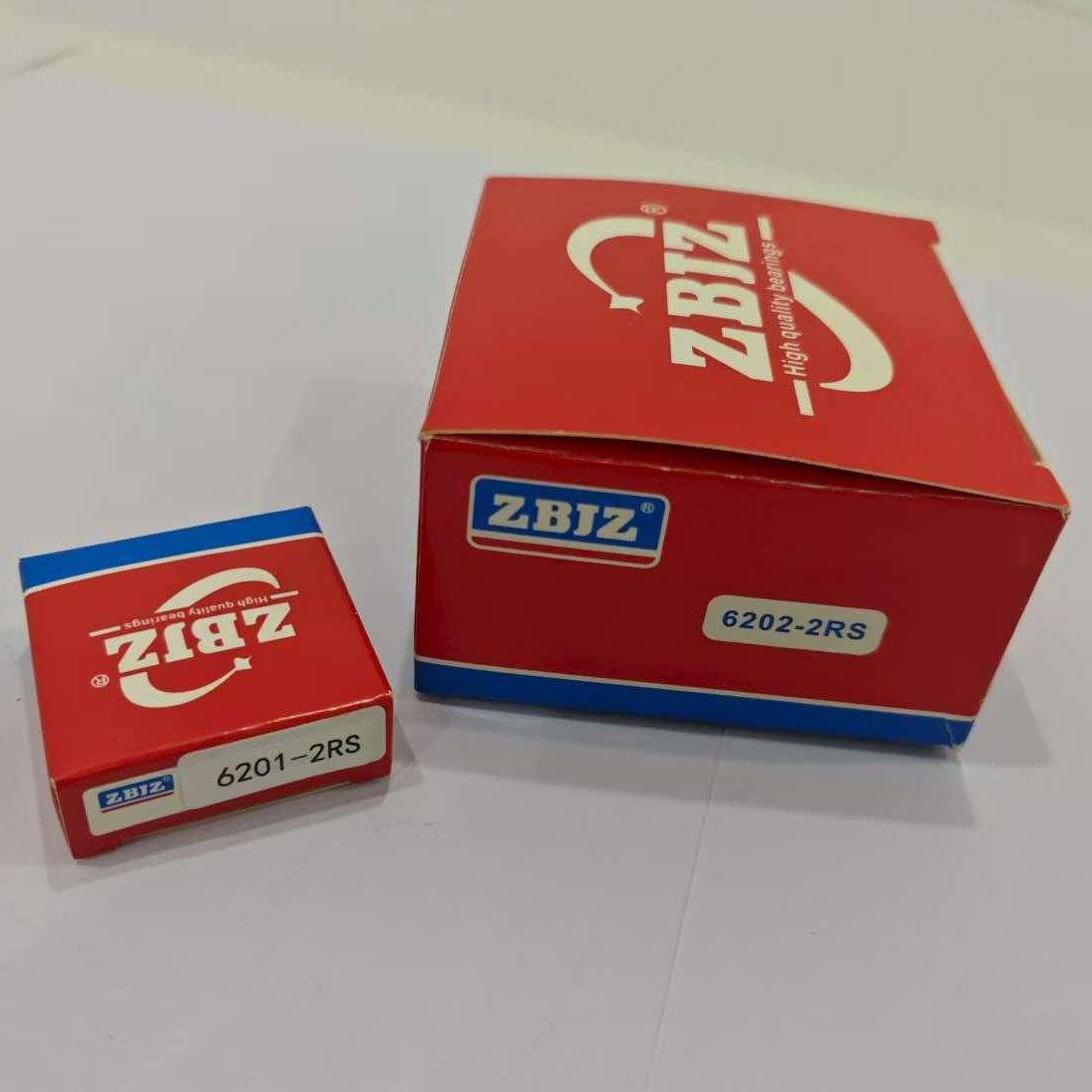

Customization of product packaging and logo

・Custom logo (minimum order: 1000 pieces)
・Custom packaging (minimum order: 2000 pieces)

Light customization:
・Customization based on drawings
・Customization based on samples
・Customization on demand

Our brands and partner brands

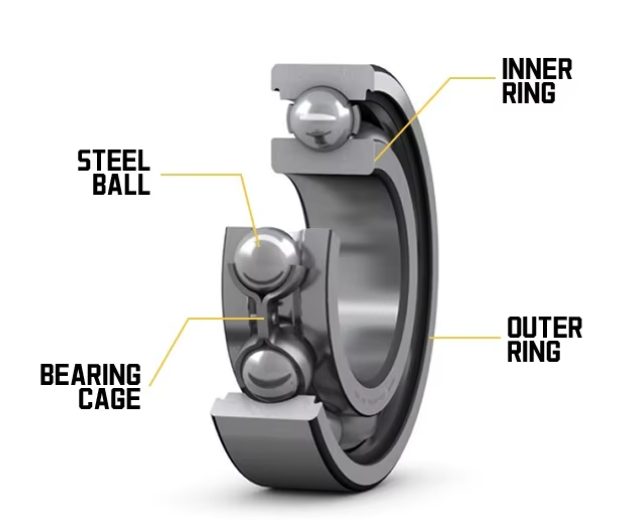

Bearing structure example diagram

6204RS product display

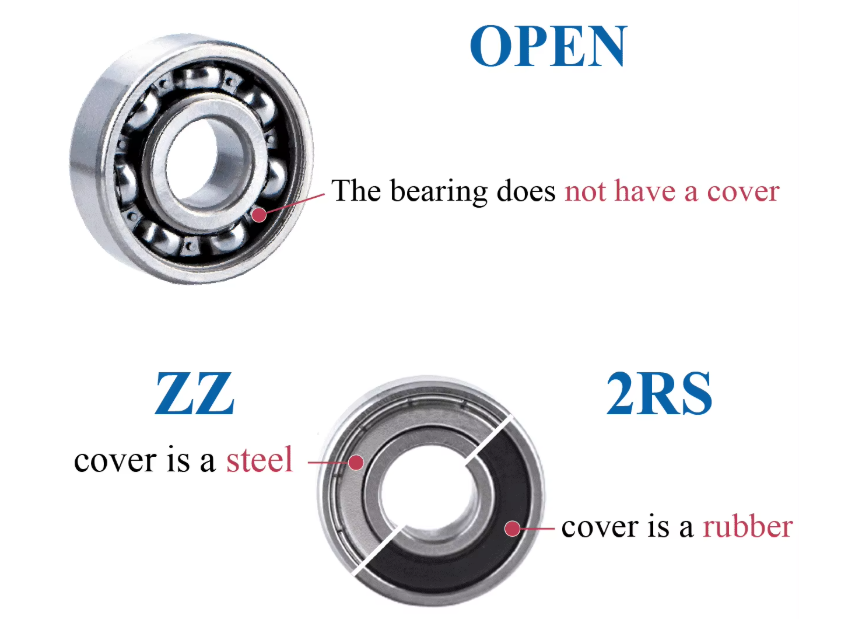

Classification of deep groove ball bearing sealing covers

White steel sealing cap ZZ

1. Excellent Sealing Performance
A special sealing design effectively isolates gas and liquid leaks, making it suitable for applications requiring a sealed environment, such as sewage treatment tanks and chemical tanks, to prevent the escape of harmful gases and the infiltration of pollutants.

2. Strong Corrosion Resistance
The fiberglass reinforced plastic material is resistant to acids, alkalis, and salt spray, making it suitable for corrosive environments such as chemical and sewage treatment, with a service life of over 10 years.

3. High Load-bearing Capacity
The load-bearing rating meets Class A standards, capable of withstanding the pressure of heavy vehicles or equipment, making it suitable for applications requiring high loads, such as municipal sewage lift pumping stations.

4. Anti-aging and Durable
The surface is treated with a special process to effectively block UV rays and chemical corrosion. It is resistant to fading or cracking with long-term use, and has low maintenance costs.
5. Easy Installation
Customizable sizes and shapes (such as arched and round) are supported, allowing for quick adaptation to various sewage tank structures, making installation simple and efficient.

Yellow iron sealing cap ZZ

Rubber sealing cap 2RS

1. Dust and Waterproof
The rubber sealing cover effectively blocks dust and moisture from entering the bearing, preventing foreign matter from intruding and causing lubricant loss and component wear, while also preventing moisture-induced rust.

2. Maintenance-Free Design
Bearings using rubber seals are typically sealed for life, eliminating the need for regular grease relubrication and simplifying maintenance.

3. Applicability
Rubber seals operate stably in temperatures ranging from -35°C to 165°C, are corrosion-resistant, and offer high ductility, making them particularly suitable for operating conditions requiring frequent starts and stops or varying loads.

4. Noise and Friction Reduction
Compared to metal dust covers, rubber sealing covers offer lower friction, quieter operation, and are suitable for high-speed operation.

Disclosure of non-sealed structure

1. Reduced Friction
Because they lack a seal, uncapped bearings experience relatively low friction, making them suitable for applications requiring high speeds or high loads, such as in automobiles and ships.
2. Improved Lubrication Efficiency
In environments with good lubrication conditions and a clean environment, uncapped bearings provide more complete access to grease or oil, reducing lubricant loss due to the seal structure and maintaining more stable lubrication.
3. Simplified Structural Design
Some coverless bearings (such as motor bearings) can eliminate the need for inner and outer covers, simplifying the assembly process and reducing manufacturing costs. However, it should be noted that this design places high demands on the lubrication system and requires the use of circulating lubricant.
4. Wider Applicability
In environments with low dust levels or good lubrication conditions, coverless bearings offer greater versatility and are particularly suitable for industrial applications requiring frequent disassembly or maintenance.

How to order products？

Find us through the contact form on the website

Find us through the contact information on the website, such as WeChat, WhatsApp, email, etc. We will reply you in time after receiving your message and ask you about the details of the product.

What product model do you need?
What is the quantity you need? How do we cooperate? Do we ship to your designated warehouse in China, or do we find a shipping company to ship it ourselves? This is related to the calculation of freight.
What is the quality level of the product? What are the material requirements?

Determine shipping method and price

Quotation Calculation

We will give you the best wholesale price based on the quantity, quality grade required, as well as the shipping method and packaging method.

How to receive the goods

How do you receive goods?

After we ship the goods, we will provide you with the following documents and assist in receiving the goods.

Customs declaration data sheet
Bill of Lading Data Sheet
Invoice corresponding to the product
